stock auto trans build?????

power ranger 2.5 · 07-26-2010, 11:00 PM

does anyone know how to build the stock auto trans to be able to handle the power from 25psi?? i would love to keep my stock trans but i think i might just use a c4 but i cant find a bellhousing for the 2.3 anywhere

jfive · 07-27-2010, 12:35 AM

I would talk to jess on that one. He has about 25 psi on a stock a4ld, and he did some electric adjustments to it. I would still try to have a C4 built in case of failure, cause for the cost of a rebuilt one you could have one heck of a C4 that won't fail.

BogusSVO · 07-27-2010, 09:52 AM

for the A4 (a wate of time and money IMHO) you will need the later model internals form a 4.0l Explorer, I am not sure if it has to be the 4x4 one or not....

Kurt · 07-27-2010, 09:52 AM

I have a 2000 4R44E (electronic A4LD). The one upgrade that I had to do and is pretty much a must is the forward planetary gearset. The 2.5 came with fewer planet gears then it's 4.0l counterpart. Also, make sure you have any valve body updates done.

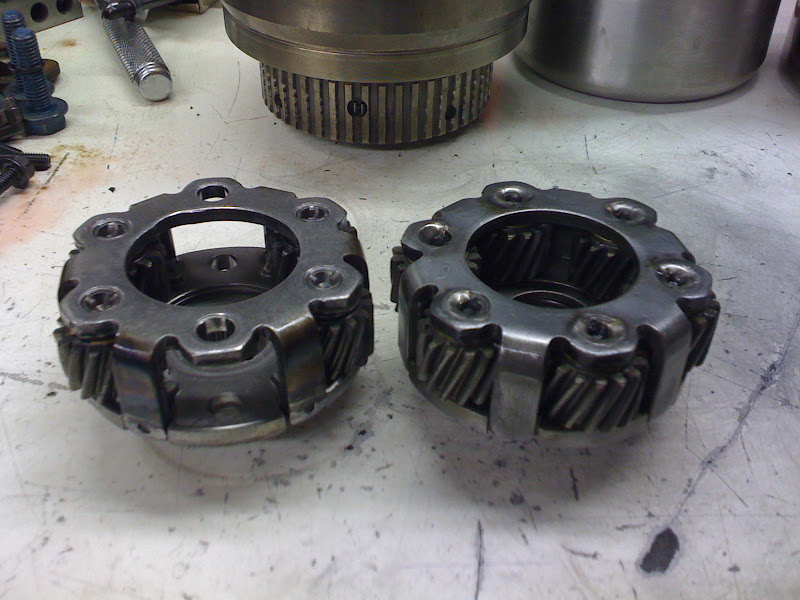

2.3/2.5 on the left 4.0L on the right

AJ_Fritz · 07-27-2010, 11:49 AM

4R44E is the one jess was, is running. adjusting the transmission though the tuner.

power ranger 2.5 · 07-28-2010, 08:51 PM

thanks for the advice, so all i have to do for the stock auto is change the planetary's, do valve body updates and use the tunner? sounds pretty simple. i just dont want to dump a bunch of money in to the 4R44E if for the same price i can get a c4.

power ranger 2.5 · 07-28-2010, 11:00 PM

what exatly do i have to do to the valve body?

Kurt · 07-29-2010, 07:08 AM

Don't get me wrong here. A c4 will ultimately be able to handle a lot more then a 4r44e. The c4 has a huge aftermarket behind it. The 4r has virtually nothing. If the 4r isn't shocked to hard, it *should* be able to handle 300+ish horse.... But.....

I recommend that you purchase a 'rebuilt' complete valve body. They are not very expensive and all the homework is done for you. Look at some ford explorer forums for the who what how on the 4r44e/a4ld. It's all been covered quite well.

power ranger 2.5 · 07-29-2010, 11:38 PM

cool, tanks for the help! i just would rather build stocker (for now). i just didn't know exactly what had to be done to keep it. i seen jess runnin' it and i didnt think it would handle the power or if it was very practicale. i don't plan on making to much power (untill i get more money).im just going to start out with 10 or 12 psi and work my way up from there.so the 4r44e will work for me for a while.

07-26-2010, 11:00 PM	#1
power ranger 2.5 TRF Member Join Date: Sep 2009 Location: north west IN Userid: 834 Posts: 11	stock auto trans build????? does anyone know how to build the stock auto trans to be able to handle the power from 25psi?? i would love to keep my stock trans but i think i might just use a c4 but i cant find a bellhousing for the 2.3 anywhere

07-27-2010, 12:35 AM	#2
jfive TRF Senior Member Join Date: Nov 2009 Location: Columbia Falls, Montana Userid: 878 Posts: 1,772 My location	I would talk to jess on that one. He has about 25 psi on a stock a4ld, and he did some electric adjustments to it. I would still try to have a C4 built in case of failure, cause for the cost of a rebuilt one you could have one heck of a C4 that won't fail. __________________ 2006 Scion XB stock VVT 1.5 1992 Ford ranger 2.3 stock for now but have HX35W, E6 manifold, 88 T/C pistons ARP bolts, Mahle rings, Clevite bearings, and big valved head. 1989 GMC 1/2 ton stepside 388 stroker 450hp Sportsman II heads 10.5 to 1 single plane, Hei dist, roller cam, headers, 3" dual exhaust. 1979 Ford F150 400m with edelbrock intake carb and cam. Heads ported. 1984 Ford Ranger 2.3 one barrel. 5speed. long box

07-27-2010, 09:52 AM	#4
Kurt TRF Senior Member Join Date: Dec 2007 Location: Wauwatosa, WI Userid: 18 Posts: 143 My location	I have a 2000 4R44E (electronic A4LD). The one upgrade that I had to do and is pretty much a must is the forward planetary gearset. The 2.5 came with fewer planet gears then it's 4.0l counterpart. Also, make sure you have any valve body updates done. 2.3/2.5 on the left 4.0L on the right __________________ My Junk

07-27-2010, 11:49 AM	#5
AJ_Fritz Administrator, B2urbo Join Date: Jun 2008 Location: Massillon, Ohio Userid: 492 Posts: 1,759 My location	4R44E is the one jess was, is running. adjusting the transmission though the tuner. __________________ The WarWagon 90 Bronco II, Black, 4x4, 2.3L TurboCharged, Holset HX35, Full Stainless paired pulse header, 38mm External Wastegate, 3inch Exhaust, HKS SSQV BOV, Uncut Powerstroke IC, 255lph HVHP walbro, Ported Polished early Dual Plug ranger head, ported lower, custom sheetmetal Upper Plenum, LA3-BigVam-35# injectors. mostly stock setup The WarHorse 1986 Mustang notchback, 2.3l turbocharged, Holset HX40 16cm turbine w/ T3 footprint, full stainless paired pulse header, 4inch DP and cutout, 3" full exhaust w/ high flow cat, PLX R300 widebandO2, 255lph HP/HV walbro. plans changed putting things in motion for and ARCA headed 9000rpm animal!

07-29-2010, 07:08 AM	#8
Kurt TRF Senior Member Join Date: Dec 2007 Location: Wauwatosa, WI Userid: 18 Posts: 143 My location	Don't get me wrong here. A c4 will ultimately be able to handle a lot more then a 4r44e. The c4 has a huge aftermarket behind it. The 4r has virtually nothing. If the 4r isn't shocked to hard, it should be able to handle 300+ish horse.... But..... I recommend that you purchase a 'rebuilt' complete valve body. They are not very expensive and all the homework is done for you. Look at some ford explorer forums for the who what how on the 4r44e/a4ld. It's all been covered quite well. __________________ My Junk

07-28-2010, 08:51 PM	#6
power ranger 2.5 TRF Member Join Date: Sep 2009 Location: north west IN Userid: 834 Posts: 11	thanks for the advice, so all i have to do for the stock auto is change the planetary's, do valve body updates and use the tunner? sounds pretty simple. i just dont want to dump a bunch of money in to the 4R44E if for the same price i can get a c4.

07-28-2010, 11:00 PM	#7
power ranger 2.5 TRF Member Join Date: Sep 2009 Location: north west IN Userid: 834 Posts: 11	what exatly do i have to do to the valve body?

07-29-2010, 11:38 PM	#9
power ranger 2.5 TRF Member Join Date: Sep 2009 Location: north west IN Userid: 834 Posts: 11	cool, tanks for the help! i just would rather build stocker (for now). i just didn't know exactly what had to be done to keep it. i seen jess runnin' it and i didnt think it would handle the power or if it was very practicale. i don't plan on making to much power (untill i get more money).im just going to start out with 10 or 12 psi and work my way up from there.so the 4r44e will work for me for a while.
